Trapezoidal Roof Short Rail Mounting Systems

In the field of rooftop solar photovoltaic (PV) installation, trapezoidal metal roofs have become one of the most widely used roofing structures in industrial, commercial and even partial residential buildings due to their high strength, light weight, good waterproof performance and long service life. To match the structural characteristics of trapezoidal roofs and meet the efficient installation needs of solar modules, trapezoidal roof short rail mounting systems have emerged as a optimized solution, gradually replacing traditional long rail and direct fixation solutions, and becoming the preferred choice for trapezoidal roof PV projects.

What is Trapezoidal Roof Short Rail Mounting Systems

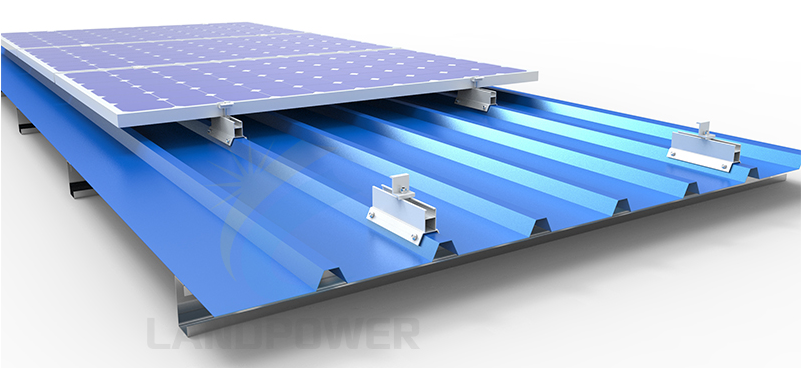

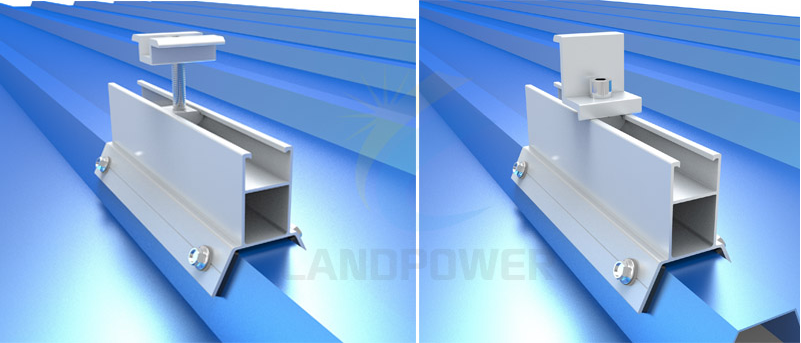

Trapezoidal roof short rail mounting systems are a specialized PV module fixing solution tailored for trapezoidal profiled metal roofs. Unlike traditional continuous long rail systems that lay full-length guide rails on the roof, this system adopts a segmented short rail design. The short rails are directly fixed on the crest of trapezoidal roof plates, and solar PV modules are stably connected to the roof structure through mid clamps and end clamps matched with the short rails.

This system abandons the redundant full-length rail layout, retains the core load-bearing and fixing functions, and forms a lightweight, efficient and cost-effective mounting structure. It is specially designed to adapt to the undulating crest and trough structure of trapezoidal roofs, ensuring the stability of the PV system while minimizing the damage to the roof body.

Core Advantages of Trapezoidal Roof Short Rail Mounting Systems

Cost-Effectiveness

The segmented short rail design greatly reduces the amount of aluminum alloy materials used, lowering the material cost of the entire mounting system. At the same time, the lightweight components reduce the transportation and handling costs. Compared with traditional long rail systems, it can save 20%-30% of the material cost for the project, making it a cost-effective choice for large-scale industrial and commercial PV projects.

Simplified Installation Efficiency

The system components are highly pre-assembled, and the short rails are equipped with pre-drilled holes, eliminating the need for on-site cutting and punching. Construction personnel can complete the fixation of short rails and modules only with conventional installation tools, which greatly shortens the construction period. The simple installation process also reduces the labor input and professional technical requirements, effectively improving the overall construction efficiency of the PV project.

Superior Roof Protection

The system is only fixed on the crest of the trapezoidal roof plate, with a small number of perforation points, and each perforation point is equipped with a complete waterproof sealing structure. This minimizes the damage to the roof's overall structural integrity and waterproof layer, avoiding potential water leakage risks. Compared with the direct fixation method without guide rails, it also avoids stress concentration on the roof plate and prolongs the service life of the roof.

 Aesthetic and Space-Saving

 The low-profile short rail design is integrated with the trapezoidal roof, avoiding the bulky feeling of traditional long rails. The overall rooftop PV system presents a neat and streamlined appearance, enhancing the aesthetic appearance of the building. At the same time, the compact structure does not take up too much rooftop space, leaving room for later maintenance and expansion of the PV system.

Application Scenarios

Trapezoidal roof short rail mounting systems are widely used in various rooftop PV projects with trapezoidal metal roofs, mainly including:

1.Industrial factory buildings: Large-scale trapezoidal metal roofs of factories, realizing distributed PV power generation and reducing enterprise energy costs.

2.Commercial buildings: Shopping malls, office buildings, logistics warehouses and other commercial buildings with trapezoidal roofs, building green commercial energy systems.

3.Public buildings: Schools, hospitals, stadiums and other public facilities, matching the building's structural characteristics to carry out clean energy layout.

4.Partial residential buildings: Villas and residential buildings with trapezoidal metal roofs, meeting the needs of household distributed PV installation.

With the rapid development of the global distributed photovoltaic industry and the continuous popularization of trapezoidal metal roof buildings, trapezoidal roof short rail mounting systems will usher in a broader application space. In the future, with the advancement of material technology and structural design, the system will develop in the direction of lighter weight, higher installation efficiency, and stronger environmental adaptability. At the same time, the personalized customization function of the system will be further improved to adapt to more diversified trapezoidal roof structures and solar module types.

In the context of global energy transformation, the trapezoidal roof short rail mounting system, with its unique technical advantages and economic benefits, will continue to play an important role in the field of rooftop photovoltaic installation, promoting the efficient and sustainable development of distributed photovoltaic projects.
