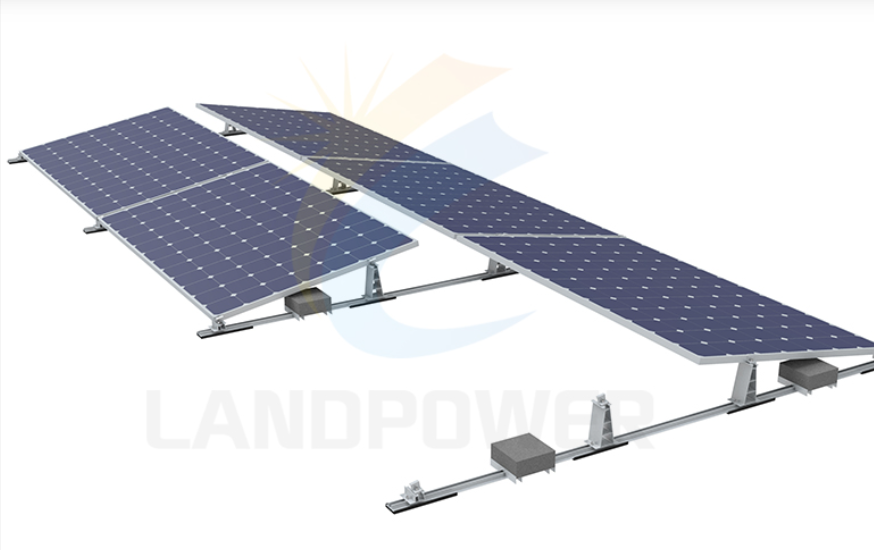

The New Flat Roof Solar Mounting System comes with both a south orientation and east west orientation configuration and they are delivered with pre-assembled mounting accessories, quick and simple to use. They are just few components and the components are made from premium material ike base rall, front and rear support, mid and end clamp. t is easy and cost-effective flat roof mounting solution.

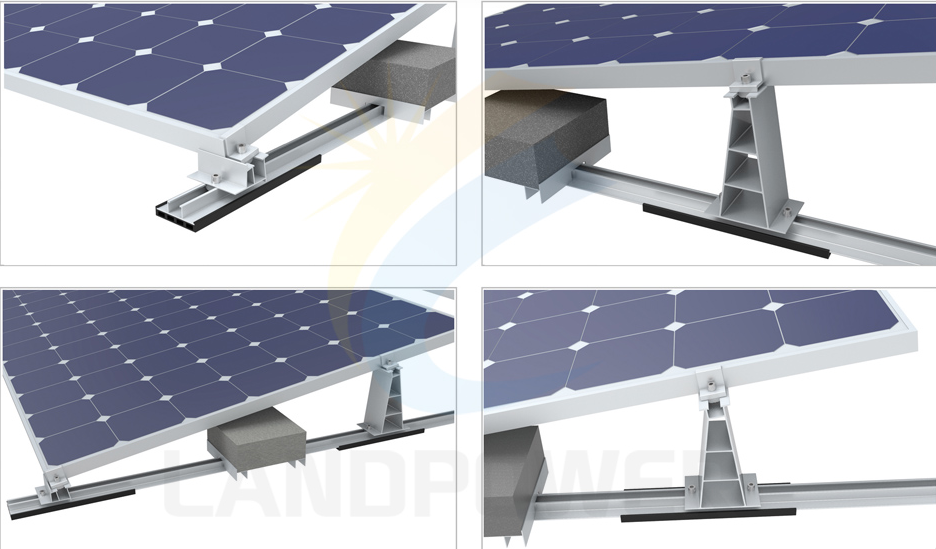

Details of the Flat Roof Mounting

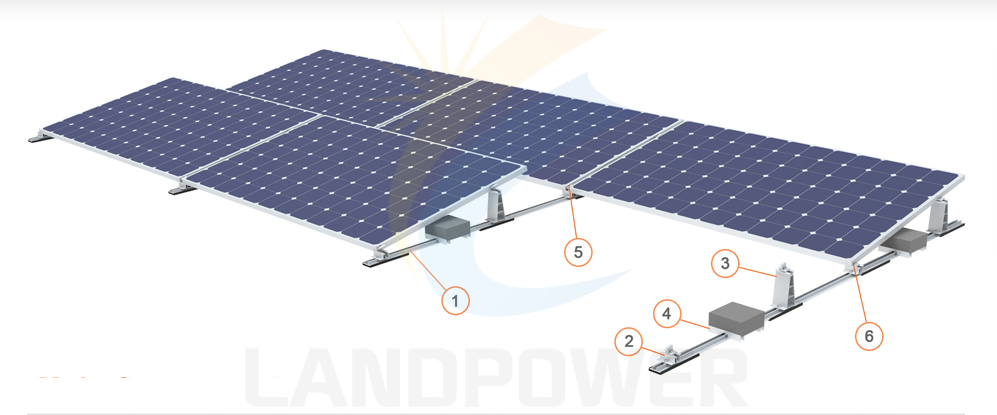

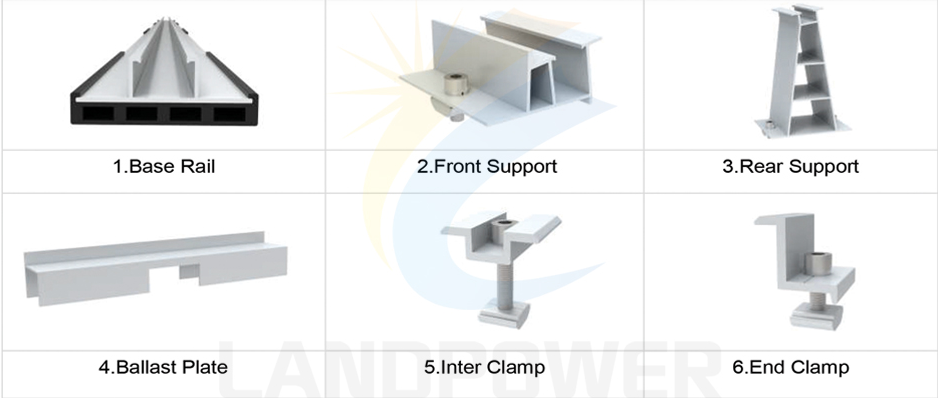

Main Components

TECHNICAL INFORMATION

Install Site: Flat Roof or Metal Roof

Tilt Angle: 10 degrees

Panel Orientation: Soth facing or East West

Standard: AS/NZS 1170,EN 1090

Material: High Class Aluminum alloy Al 6005 T5 and Stainless Steel 304

Color: Natural and Customized

If you need this solar mounting system, please feel free to contact us. (sales7@landpowersolar.com)
