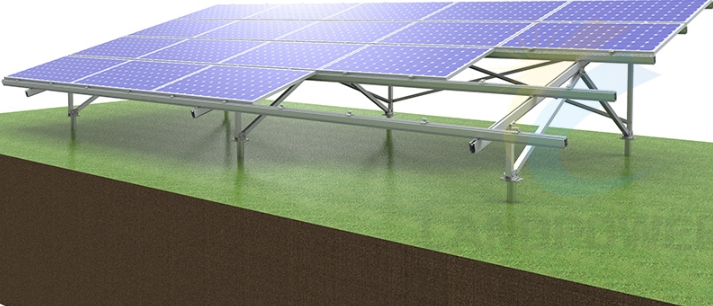

The Aluminum Ground Mounting are anodized with A2 fasteners,it is very good mounting material for anti-corrosion,less after serviceproblem,which more long lifespan for using. The triangle supports are design to be foldable and the most of part are pre-assembled in the factory,so it is quite easy and fast on the installation, save labour cost,it isalso cost-effective mounting structure with superior aesthetics.

TWO FOUNDATION OPTIONS:

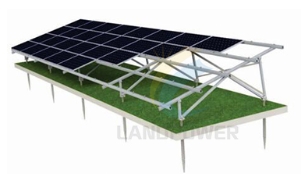

Ground Screw Foundation

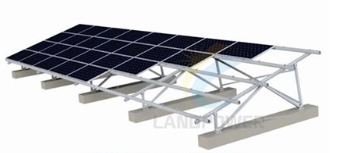

Concrete Foundation

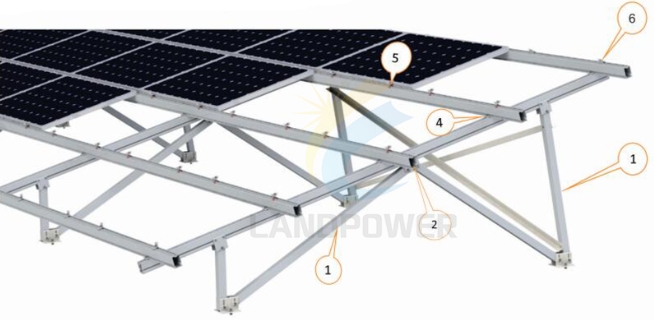

THE MAIN COMPONENTS:

1. Pre-assembled Triangle

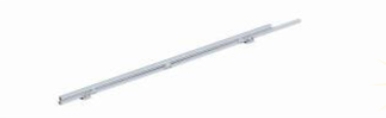

2. Rail

3. Splice

4. Rail Clamp

5. Mid Clamp

6. End Clamp

7. Ground Screw

Technical Information

Install site : Open Field
Module Type: Framed or Frame-less
Module Arrangement:Portrait or Landscape

Foundation:Ground Screw or Concrete

Main Material : Aluminum 6005-T5& Stainless steelA2(304)

Color: Silver.Black or Customized

Anti-corrosive: Anodized aluminum & stainless steel, EPDM

If you are interested in this project, please feel free to contact us. (sales7@landpowersolar.com)
